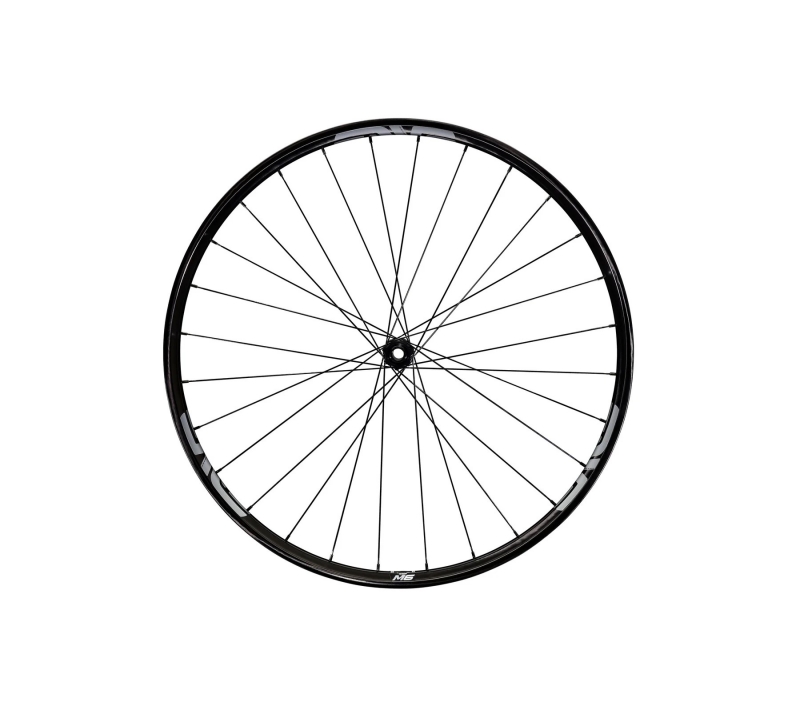

ENVE M6 Factory MTB Wheelset

ENVE M6

The Everyday, Any-Trail Wheel The new M6 is the every day, any trail wheel designed for long rides in the mountains — where reliability matters as much as every gram shaved. It's built off what we learned from our M5 Pro race wheel, with an all-new shape and carbon layup to deliver more traction, durability, and comfort than anything else in its class. Like all new M Series wheelsets, the M6 features unique rim shapes and construction front and back and is built to ENVE’s proven INNERDRIVE mountain hubs

Like all new M Series wheelsets, the M6’s rims feature unique front and rear rim design. To accommodate the modern trail rider’s preference for 2.3-2.5” wide tires, the M6’s front rim features an internal rim width of 32mm, and the rear is 29mm. The front rim’s additional width and lighter construction maximize compliance, traction, and tire stability. The rear rim has been optimized for power transmission and durability.

Product Details

Cross-Country, Down-Country, Trail Applications
29” - 1575g, 29”/27.5” - 1544g
Front and rear-specific construction and geometry
Inner-Rim Width Front: 32mm
Inner-Rim Width Rear: 29mm
Wide Hookless Bead - Trail-optimized anti-pinch flat protection
Brass external nipples with Nyloc threaded locking insert
28-hole front and rear
E-MTB usage - Up to 75nm
Made in USA
Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection

Tech Specs
                                    Front        Rear

Rim Weight                  430g        445g (29")
Internal Rim Width      32mm       29mm
Hole Count                  28             28
Depth                          21mm      21mm

Pinch Flat Technology Wide Hookless Bead
Spokes CX Ray Straight Pull OH
Nipples Alpina Nylock Brass External
Spoke Tension 120kgf
Brake Type Centerlock
Front Axle Type: Boost 110/15
Rear Axle Type: Choice of Boost 148/12 or Boost 157/12
Wheelset Weight 1550g
